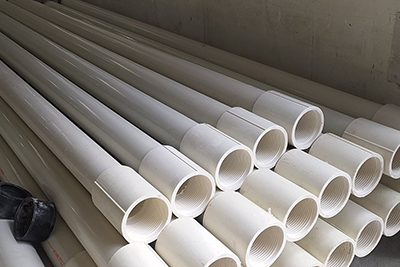

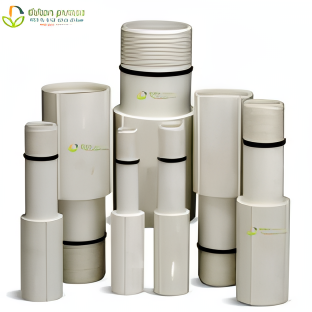

Column Pipes
Technical Specification
- Material: uPVC / Rigid PVC, specially formulated for submersible pump installations
- Standard: IS:12818 (Latest) / ASTM D1785
- Sizes Available: 1” to 4” (25 mm to 110 mm nominal bore)
- Lengths: Standard length 3m (custom lengths available)
- Threading: Square threads with rubber sealing rings for leak-proof joints
- Couplers: Heavy-duty metal / PVC couplers with O-ring sealing
- Tensile Load Capacity: Designed to withstand heavy loads of deep submersible pumps (up to 1,000 feet depth depending on pipe size and class)
Features
- Non-corrosive and rust-proof
- High tensile and impact strength
- Leak-proof threaded joints with rubber sealing rings
- Lightweight, easy to transport and install
- Smooth inner surface for better water flow
- Long service life compared to conventional GI pipes
Applications
uitable for column riser pipes in submersible pump installations
Domestic, agricultural, and industrial water lifting
Replacement for heavy and corroded GI pipes in borewells
