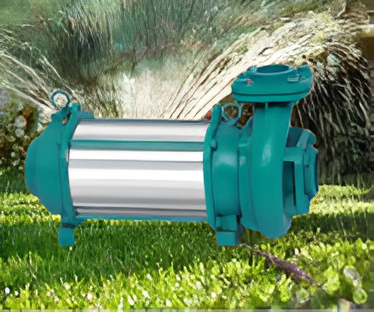

OPENWELL PUMP
Technical Specification
- Type: Horizontal / Vertical Openwell Submersible Pump
- Standard: IS:14220 (Latest)
- Power Range: 0.5 HP to 50 HP
Single Phase: 180V – 240V, 50Hz
Three Phase: 300V – 440V, 50Hz
Speed: 2880 RPM (2 Pole Motor) / 1440 RPM (4 Pole Motor)
Motor Type: Water-filled, rewindable / oil-filled induction motor
Discharge Range: Up to 2200 LPM (depending on model)
Head Range: Up to 60 meters
Pump Casing: Cast Iron / Stainless Steel (as per model)
Impeller Type: Bronze / Cast Iron / Noryl (dynamically balanced)
Shaft: Stainless Steel AISI 410 / 304
Bearings: Water-lubricated sleeve & thrust bearings
Insulation: Class ‘B’ / ‘F’
Protection: IP 68 (Dustproof & Waterproof)
Features
- Suitable for open wells, sumps, tanks, and reservoirs
- Can withstand wide voltage fluctuations
- High efficiency, low power consumption
- No need for priming and foot valve
- Robust construction with corrosion-resistant materials
- Long life with minimal maintenance
- Easy installation and serviceability
Applications
Agricultural irrigation from open wells, ponds, canals
Domestic water supply for houses, apartments, and complexes
Industrial water circulation and utility applications
Community water supply schemes
Gardening and small-scale water lifting
