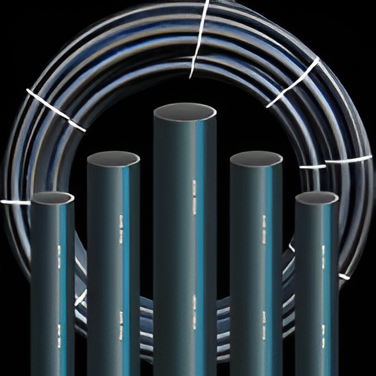

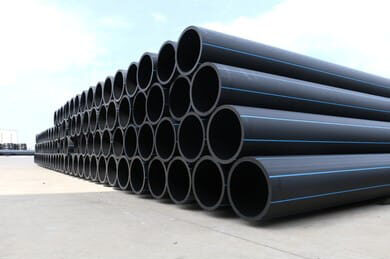

HDPE PIPES
Technical Specification
- Material: High-Density Polyethylene (PE-63, PE-80, PE-100 grades)
- Standard: IS:4984 (Latest), ISO 4427, DIN 8074
- Sizes Available: 20 mm to 400 mm (custom sizes on request)
- Pressure Rating (PN Class): PN 2.5, PN 4, PN 6, PN 8, PN 10, PN 12.5 & PN 16
- Length: Standard coil length 50m, 100m (up to 110 mm); Straight length 6m / 12m for larger diameters
- Color: Black with blue strips (as per ISI standard)
Features
- Manufactured from Virgin Raw material
- High flexibility
- Corrosion and chemical resistance
- Durable
- Smooth inner surface
Jointing Method
- Butt Fusion Welding
- Electro-Fusion Welding
- Mechanical Compression Fittings
Applications
Agricultural irrigation systems
Drinking water supply
Industrial fluid & slurry transportation
Sewerage & drainage systems
Cable ducting & conduits
